GF Signet 3-2734-00 Flat Tip pH/ORP Electrode
Product Description
The GF Signet 3-2734-00 features a patented reference electrode design and uses the unique foul-proof patented DryLoc connector. The 3-2734-00 has a flat tip design and can incorporate 3/4 inch NPT threads for installing into standard pipe-tees.
Product Information
- Flat Tip Design
- 3/4" NPT threaded sensors for use with reducing tees DN15 to DN100 (½ to 4 in.)
- pH Electrodes - Temperature element PT1000; use with 2750 Sensor Electronics
- Patented reference design for exceptional performance
- Mounts in Signet standard fittings from DN15 to DN100 (½ to 4 in.)
- Special design allows for installation at any angle, even inverted or horizontal
- Ryton (PPS) body and PTFE junction for broad range of chemical compatibility
- Patented DryLoc connector with gold plated contacts
- Quick temperature response
- Enhanced Reference and Bridge Gels to resist chemical poisoning and prolong the life of the electrodes
- PTFE Reference Junction resists fouling and chemical attack
| General |
| Performance | Efficiency | >95% @ 25 °C (77 ° F) |
| Operating Range | pH | 0 to 14 pH |
| | ORP | ±2000 mV |
| 3-2734-HF, 3-2736-HF | Hydrofluoric acid resistant glass, pH 6 or below; trace HF ≤2% |
| Compatibility |
| | 2750 Sensor Electronics (for 8900, 9900, Profibus Concentrator, 4 to 20 mA) |
| Temperature Sensor |
| | PT1000 | Compatible with Signet 2750 pH/ORP Sensor Electronics for connection to a PLC or to the Signet 8900 or 9900 instruments and Profibus Concentrator |
| Process Connection |
| | ¾ in. NPT | ISO 7/1-R 3/4 | Mounts into Signet fittings |
| Wetted Materials |
| | pH | Ryton® (PPS), glass, PTFE, FPM |
| | ORP | Ryton® (PPS), glass, PTFE, FPM, Platinum |
| Max. Temperature/Pressure Rating |
| Operating Temperature Range | 10 °C to 100 °C | 50 °F to 212 °F |
| Operating Pressure Range | 0 to 6.9 bar (0 to 100 psi) @ 10 °C to 65 °C (50 °F to 149 °F) |
| | Linearity Derated 6.9 to 4.0 bar (100 to 58 psi) @ 65 °C to 100 °C (149 °F to 212 °F) |
| Recommended Storage Temperature |
| | 0 °C to 50 °C | 32 °F to 122 °F |
| The electrode glass will shatter if shipped or stored at temperature below 0 °C (32 °F) |
| The performance life of the electrode will shorten if stored at temperatures above 50 °C (122 °F) |
| Mounting |
| In-line Mounting | Use the sensor threads |
| | Use a Signet standard fitting ½ to 4 in. |
| | Sensor can be mounted at any angle |
| Submersible Mounting | Use threads on model 2750 |
| | Requires ¾ inch NPT or ISO 7/1-R 3/4 male threaded liquid tight extension conduit. |
| Shipping Weight |
| | 0.25 kg | 0.55 lb |
| Standards and Approvals |
| | CE, FCC, RoHS compliant, China RoHS |
| | Manufactured under ISO 9001 for Quality, ISO 14001 for Environmental Management and OHSAS 18001 for Occupational Health and Safety |

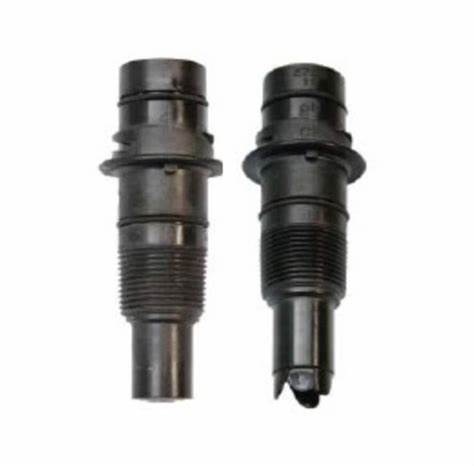

Product Photo
