SIEMENS 6ES7153-2BA10-0XB0 SIMATIC DP, Connection ET 200M IM 153-2 High Feature

Name: SIEMENS 6ES71532BA100XB0 SIMATIC DP Connection ET 200M IM 1532 High Feature
Brand: Siemens
Price: 1 USD

Quality SIEMENS 6ES7153-2BA10-0XB0 SIMATIC DP, Connection ET 200M IM 153-2 High Feature wholesale

Brand Name : Siemens

Model Number : 6ES7153-2BA10-0XB0

Certification : CE

MOQ : 1

Price : variable

Payment Terms : T/T

Supply Ability : 100PCS/MONTHS

Delivery Time : Negotiate

Packaging Details : Carton

Description : 1.5A Siemens Connection Module, 24Vdc Rohs Compliant: Yes

Manufacturer : Siemens

Product NO. : 6ES7153-2BA10-0XB0

Vendor identification (VendorID) : 801Eh

Inrush current, typ. : 3 A

Power loss, typ. : 5.5 W

Isolation tested with : Isolation voltage 500 V

Rated value (DC) : 24 V

Weight, approx. : 360 g

Contact Now

6ES7153-2BA10-0XB0 Siemens Connection Module, 1.5A, 24Vdc Rohs Compliant: Yes

SIMATIC DP, ET 200M INTERFACE IM 153-2 HIGH FEATURE FOR MAX. 12 S7-300 MODULES, WITH REDUNDANCY, TIME STAMPING FIT FOR ISOCHRONE MODE NEW FEATURES: 12 MODULES / STATION SLAVE INITIATIVE FOR SWITCHES AND DRIVE ES EXTENDED DATA FOR HART SECON- DARY VARIABLES OPERATON WITH 64PT MODULES EXTENDES TIMESTAMPS WITH 32 SIGNALS / SLOT +++ SEE
COMPATIBILITY NOTES IN IN THE MANUAL +++

Product Attributes

General information
Vendor identification (VendorID)	801Eh
Supply voltage
Rated value (DC)	24 V
● 24 V DC	Yes
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
permissible range (ripple included), lower limit (DC)	20.4 V
permissible range (ripple included), upper limit (DC)	28.8 V
external protection for power supply lines (recommendation)	2,5 A
Mains buffering
● Mains/voltage failure stored energy time	5 ms
Input current
Current consumption, max.	650 mA; with 24 V DC supply
Inrush current, typ.	3 A
I²t	0.1 A²·s
Output current
for backplane bus (5 V DC), max.	1.5 A
Power loss
Power loss, typ.	5.5 W
Hardware configuration
Number of modules per DP slave interface, max.	12
Time stamping
Accuracy	1 ms; 1ms at up to 8 modules; 10ms at up to 12 modules
Number of message buffers	15
Messages per message buffer	20
Number of stampable digital inputs, max.	128; Max. 128 signals/station; max. 32 signals/slot
Time format	RFC 1119
Time resolution	0.466 ns
Time interval for transmitting the message buffer if a message is present	1 000 ms
Time stamp on signal change	rising / falling edge as signal entering or exiting
Dimensions
Width	40 mm
Height	125 mm
Depth	117 mm
Weights
Weight, approx.	360 g

SIEMENS 6ES7153-2BA10-0XB0 SIMATIC DP, Connection ET 200M IM 153-2 High Feature

Related Product Recommendation

6ES7971-0BA00	6ES7134-6GD00-0BA1
6ES7972-0CB20-0XA0	6ES7531-7KF00-0AB0
6ES7407-0KR02-0AA0	6ES7132-4HB01-0AB0
A5E43523091	6ES7322-5GH00-0AB0
6EP1336-3BA10	6ES7332-7ND02-0AB0
6EP1332-5BA10	6ES7135-6HD00-0BA1
6ES7307-1KA02-0AA0	6ES7221-1BH32-0XB0
6ЕР7133-6AE00-0BN0	6ES7131-4BD01-0AA0
6EP3336-7SB00-3AX0	6ES7132-6BH00-0BA0
6ES7-153-2BA10-0XB0	6ES7131-6BH01-0BA0
6GK7443-1EX30-0XE0	6ES7523-1BL00-0AA0
RLU222	6ES7132-6BH01-0BA0

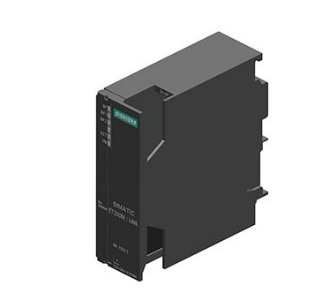

SIEMENS 6ES7153-2BA10-0XB0 SIMATIC DP, Connection ET 200M IM 153-2 High Feature Images
